Tutorial 2: Create a 3D intestine connected with an inlet and and outlet

In this tutorial, a 3D small intestine (type 2, referred to as si in the code) will be created which is connected with an inlet and an outlet (type 1). Fluid (type 3) will also be filled with the intestine. It is a part of my unpublished work.

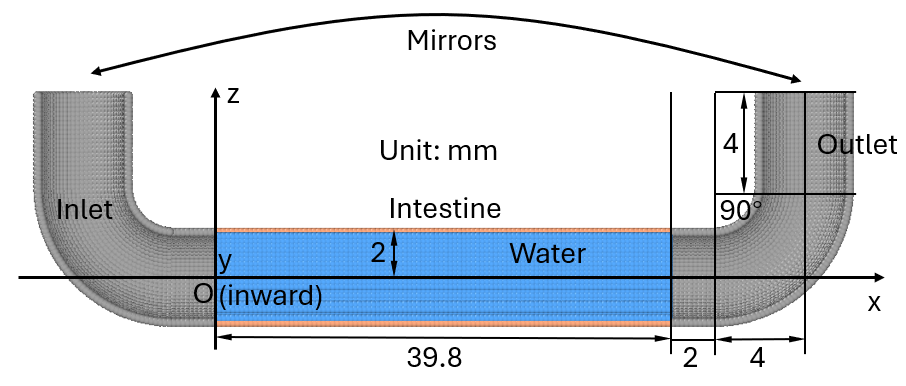

The expected result is as follows:

What we will learn in this tutorial:

• Creating 3D geometries: CylinderSide, TorusSurface, and FilledCylinder

• Performing operations: mirror and Union

• Accessing Geometry class member: zs

Specify the parameters

Like Tutorial 1, let’s first import the necessary libraries and set up the simulation parameters:

import geoparticle as gp
from lammps import lammps
import numpy as np

rho_fluid = 993
rho_wall = 1040
l_pipe_hrz = 0.002
l_pipe_vert = 0.004
r_si = 0.002
r_torus = 2 * r_si
dl = 2e-4
l_si = 0.02 - dl

Obtain all the particle coordinates

We will first create the inlet, then the intestine, and finally the outlet. The outlet is a mirror of the inlet, which can be created by using the mirror operation. The inlet is composed of a verticle pipe, a torus bend, and a horizontal pipe, with the same radius r_si.

pipe_in_vert = gp.CylinderSide(
    r=r_si, # radius of the cylinder
    l_axis=l_pipe_vert, # length along the cylinder axis
    dl=dl, # particle spacing
    axis='z' # cylinder axis direction
).shift(x=-r_torus - l_pipe_hrz, z=r_torus)
l_pipe_vert = pipe_in_vert.l_axis
n_ring = pipe_in_vert.n_ring

Although we have defined the length of the vertical pipe as l_pipe_vert, the actual length may be slightly different. So we update the variable l_pipe_vert here.

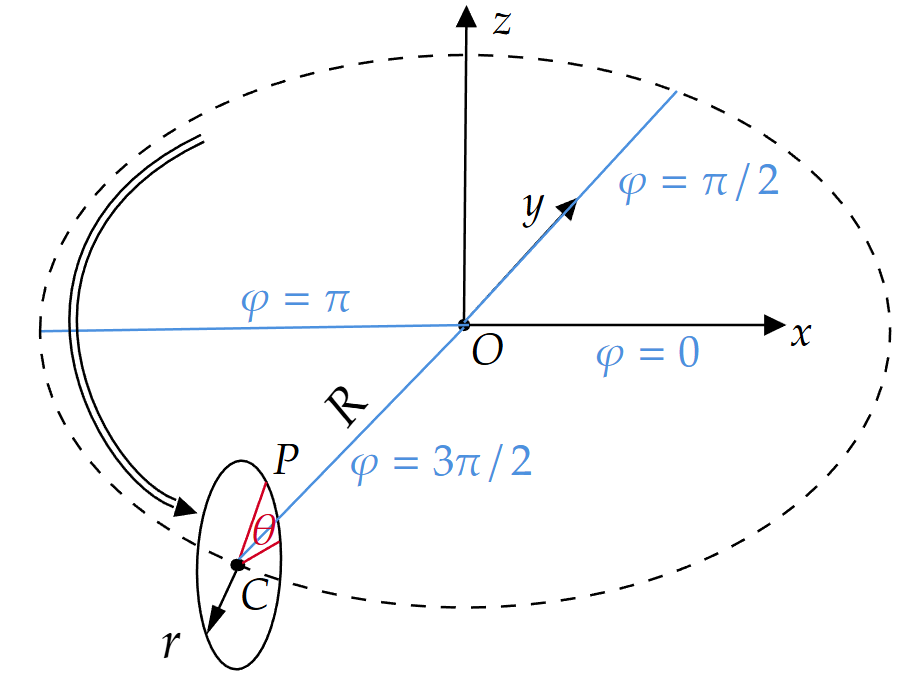

Now create the torus bend. But we should know how geoparticle defines the torus first. The torus is created by revolving a circle along a circular path. There two circles: the circle to be revolved and the path circle. The former is called the cross-section circle, whose radius is the minor radius \(r\) and the center angle is \(\theta\). The latter is called the path circle, whose radius is the major radius \(R\) and the center angle is \(\varphi\).

According to our dimension specification, the minor radius is r_si, and the major radius is r_torus. \(\varphi\) ranges from 180 to 270 degrees.

torus_in = gp.TorusSurface(
    r_minor=r_si,  # minor radius
    r_major=r_torus,  # major radius
    dl=dl,  # particle spacing
    n_ring=n_ring,  # number of particle rings along minor circle
    phi_range='(180,270)',  # angle range along major circle
    plane='XOZ'  # plane where the major circle lies
).shift(z=r_torus, x=-l_pipe_hrz)

Interval notation is used to define the range of \(\varphi\). That is, [ and ] mean including the boundary, while ( and ) mean excluding the boundary. We exclude the boundaries here to avoid overlapping with the two pipes. Alternatively, one can set phi_range='(180,270]', reduce the length of the horizontal pipe by dl, and move it dl to the right accordingly.

Finally, create the horizontal pipe:

pipe_in_hrz = gp.CylinderSide(
    r=r_si, l_axis=l_pipe_hrz - dl, dl=dl, axis='x', name='pipe_in_hrz'
).shift(x=-l_pipe_hrz)

Now we can assemble the three parts into an inlet:

inlet = gp.Union((pipe_in_vert, torus_in, pipe_in_hrz))

Like the subtraction operation, there are three more ways to perform union:

• inlet = pipe_in_vert.union(torus_in, pipe_in_hrz)

• inlet =  pipe_in_vert + torus_in + pipe_in_hrz

• inlet = pipe_in_vert.copy()
  inlet += torus_in
  inlet += pipe_in_hrz


Next, create the intestine. In case the length of the intestine changed due to particle discretization, we update the variable l_si here.

si = gp.CylinderSide(r=r_si, l_axis=l_si, dl=dl, axis='x')
l_si = si.l_axis

The outlet can be created by mirroring the inlet along the yz plane positioned at the middle of the intestine:

outlet = inlet.mirror(plane_name='YOZ', plane_pos=l_si / 2)

Finally, create the fluid that fills the intestine, which is a cylinder with a radius of r_si - dl to avoid overlapping with the intestine wall.

fluid = gp.FilledCylinder(r_si - dl, l_si, dl, axis='x', name='fluid')

Create particles in LAMMPS

Now we can create the particles in LAMMPS. This part is similar to Tutorial 1. I will skip the explanation here.

lmp = lammps(cmdargs=['-screen', 'none', '-log', 'none'])
# This buffer is between the geometry bound and the bound of the simulation box
buffer_region = 0.1 * l_si
xlo = -(l_pipe_hrz + r_torus + r_si) - buffer_region
xhi = l_si + l_pipe_hrz + r_torus + r_si + buffer_region
ylo = -r_si - buffer_region
yhi = r_si + buffer_region
zlo = -r_si - buffer_region
zhi = l_pipe_vert + r_torus + buffer_region

lmp.commands_string(f"""
dimension    3
atom_style  rheo
units                si
newton               on
boundary     f f f
comm_modify vel yes
region      simulation_box block {xlo} {xhi} {ylo} {yhi} {zlo} {zhi}
create_box  3 simulation_box
""")
n_atoms_inlet = inlet.size
lmp.create_atoms(
    n_atoms_inlet, np.arange(n_atoms_inlet) + 1 + lmp.get_natoms(),
    np.ones(n_atoms_inlet, dtype=int), inlet.flatten_coords)
n_atoms_si = si.size
lmp.create_atoms(
    n_atoms_si, np.arange(n_atoms_si) + 1 + lmp.get_natoms(),
    np.full(n_atoms_si, 2, dtype=int), si.flatten_coords)
n_atoms_outlet = outlet.size
lmp.create_atoms(
    n_atoms_outlet, np.arange(n_atoms_outlet) + 1 + lmp.get_natoms(),
    np.ones(n_atoms_outlet, dtype=int), outlet.flatten_coords)
n_atoms_fluid = fluid.size
lmp.create_atoms(
    n_atoms_fluid, np.arange(n_atoms_fluid) + 1 + lmp.get_natoms(),
    np.full(n_atoms_fluid, 3, dtype=int), fluid.flatten_coords)
n_atoms_all = lmp.get_natoms()
log_n_atom = f'n_atoms_inlet: {n_atoms_inlet},' \
             f' n_atoms_si: {n_atoms_si},' \
             f' n_atoms_outlet: {n_atoms_outlet},' \
             f' n_atoms_fluid: {n_atoms_fluid},' \
             f' n_atoms_all: {n_atoms_all}.'
print(log_n_atom)

lmp.commands_string(f"""
mass            * 1
set             group all rheo/rho {rho_fluid}
""")

filename = 'intestine3D'
lmp.commands_string(f"""
pair_style      zero {dl * 2}
pair_coeff      * *
neighbor        {dl * 0.1} bin
run             0
write_data      {filename}.data
""")

# check atom overlapping
lmp.commands_string(f"""
delete_atoms    overlap {dl * 0.8} all all
""")
n_atoms_all_now = lmp.get_natoms()
if n_atoms_all == n_atoms_all_now:
    print('Congrats, no atoms are overlapped!')
else:
    raise RuntimeError(f'{n_atoms_all - n_atoms_all_now} atoms are overlapped!')
